Description

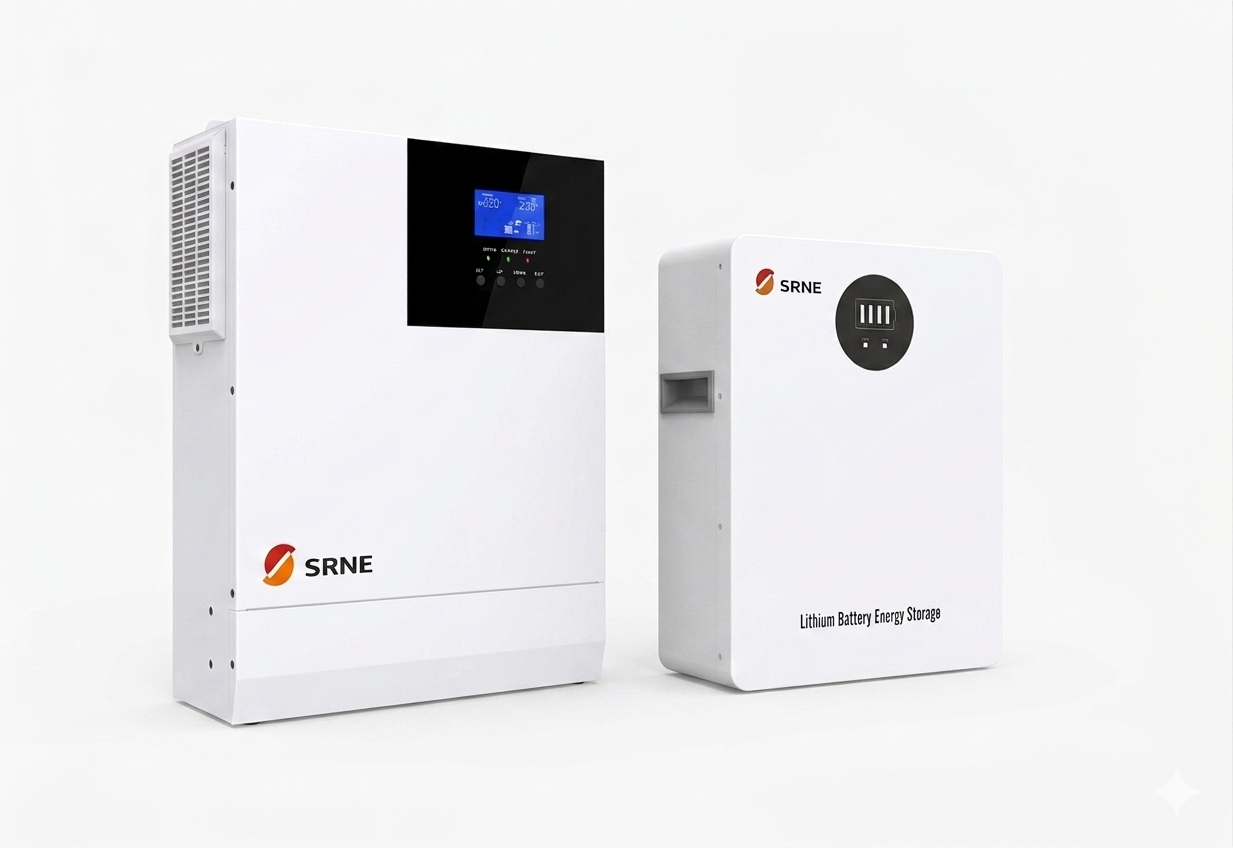

3KW COMPLETE INVERTER SYSTEM
A 3kW (3000 Watt) Complete Inverter System is a compact, entry-level power solution that comes with a 2.56kwh lithium battery storage for small homes, apartments, or offices. It is ideal for users looking to maintain “essential” power during outages. The system consumption and output can easily be monitored on a mobile smart phone since it comes with a data logger.
This 3KW Backup System (Unit-Only) is a high-capacity “UPS-style” solution designed to keep your home or office running during power outages.1 Unlike the solar package, this system charges directly from the utility grid or a generator.
Because there are no panels to “refill” the battery during the day, your runtime depends entirely on your load:
| Total Load | Example Appliances | Backup Time |
| 150W (Light) | 10 LED Bulbs, Wi-Fi, 55″ TV, Laptops | ~15–17 Hours |
| 350W (Medium) | Lights, TV, Wi-Fi, 2 Fans, 1 Fridge | ~6–7 Hours |
| 800W (Heavy) | Lights, TV, Fridge, + 1 Desktop PC/Small Pump | ~2.5–3 Hours |
⚡ Backup Performance (How long will it last?)
⚠️ Important Usage Tip
Without solar panels, the system relies entirely on the grid to charge. If you have very long blackouts (e.g., 20 hours a day), the battery may not have enough time to charge fully between outages. In such cases, adding even 2 solar panels later is highly recommended.
Because there are no panels to “refill” the battery during the day, your runtime depends entirely on your load:
| Total Load | Example Appliances | Backup Time |
| 150W (Light) | 10 LED Bulbs, Wi-Fi, 55″ TV, Laptops | ~8–12 hours |
| 350W (Medium) | Lights, TV, Wi-Fi, 2 Fans, 1 Fridge | ~6 Hours |
| 800W (Heavy) | Lights, TV, Fridge, + 1 Desktop PC/Small Pump | ~2.5–3 Hours |
📄 Technical Specifications: 3kW Hybrid Inverter
Output (AC)
Below is the Technical Datasheet for the 3KW Complete Inverter System. This datasheet covers the three core components: the 3KW Hybrid Inverter, the 2.56kWh Lithium Battery

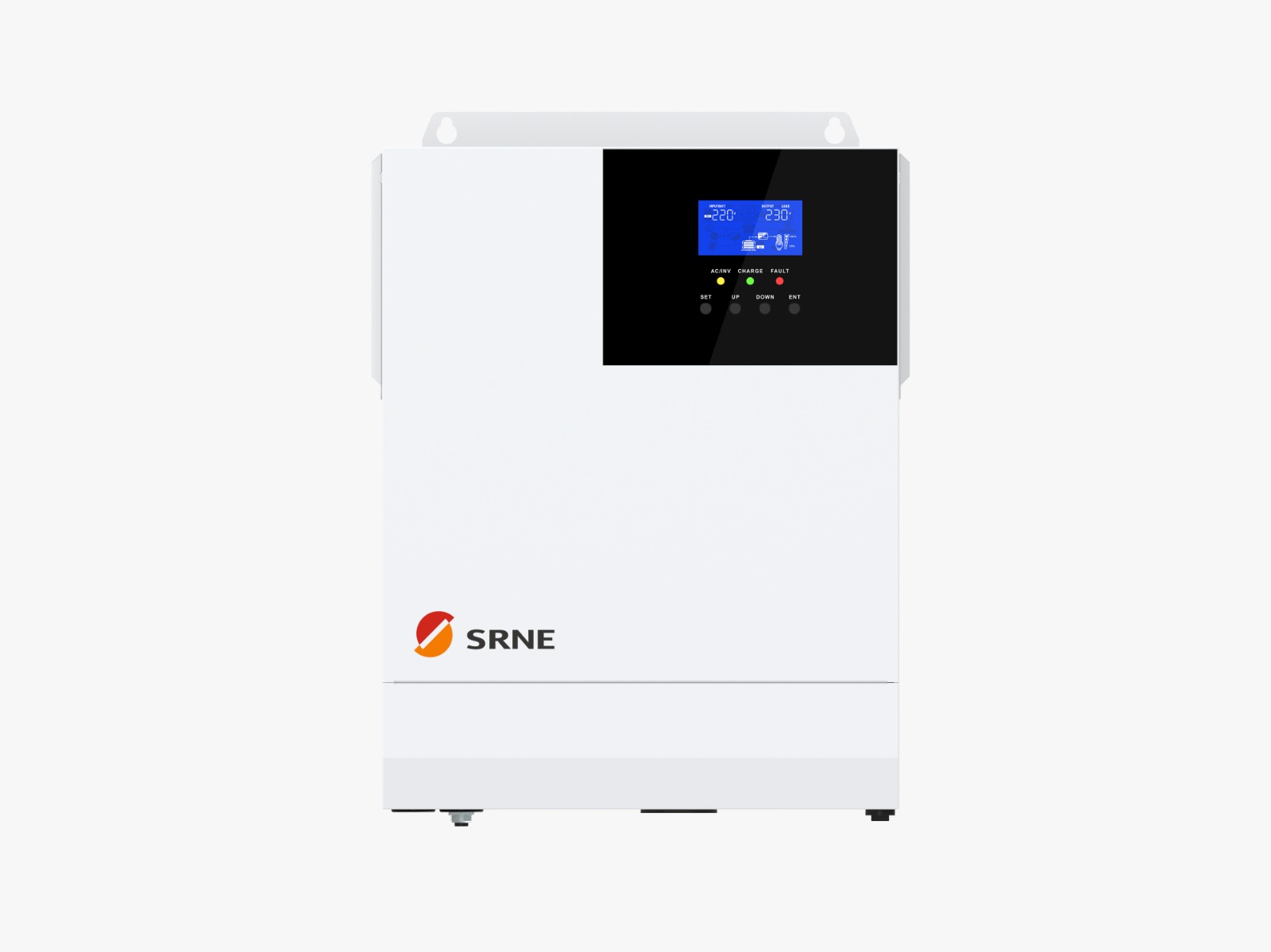

3KW Hybrid Solar Inverter (24V).
| Parameter | Specification |
| Rated Output Power | 3,000W (3.0kW) |
| Surge / Peak Power | 6,000VA (Seconds) |
| Output Waveform | Pure Sine Wave (Safe for Electronics) |
| Nominal Battery Voltage | 24V DC |
| Max. Solar (PV) Input | 4,000W (Capacity to add more panels) |
| MPPT Voltage Range | 120V – 450V DC |
| Max. PV Open Circuit Voltage | 500V DC |
| Transfer Time | 10ms (Typical UPS Speed) |
| Peak Efficiency | > 92% |

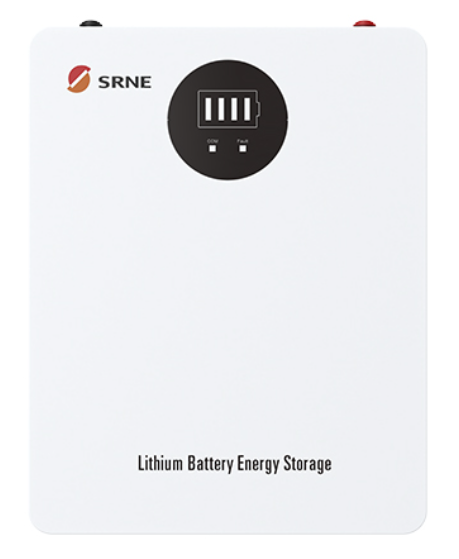

📄 Technical Datasheet: 2.56kWh LiFePO4 Hybrid Battery
Electrical Specifications for the 2.56kwh Hybrid Battery
| Feature | Specification |
| Nominal Energy | 2.56 kWh (2560 Wh) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100 Ah |
| Standard Charge Current | 50A (Recommended) |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge | 100A |
| Peak Discharge (3–5 sec) | 150A – 200A |
| Voltage Window | 20.0V – 29.2V |
Lifespan & Performance
| Feature | Specification |
| Cycle Life | >6,000 Cycles (@ 80% Depth of Discharge) |
| Design Life | 10+ Years |
| Depth of Discharge (DoD) | 90% – 95% (Safe usable energy) |
| Self-Discharge | < 3% per month |
| BMS Protections | Overcharge, Over-discharge, Over-current, Short-circuit, Temperature |
20A MPPT Controller |
