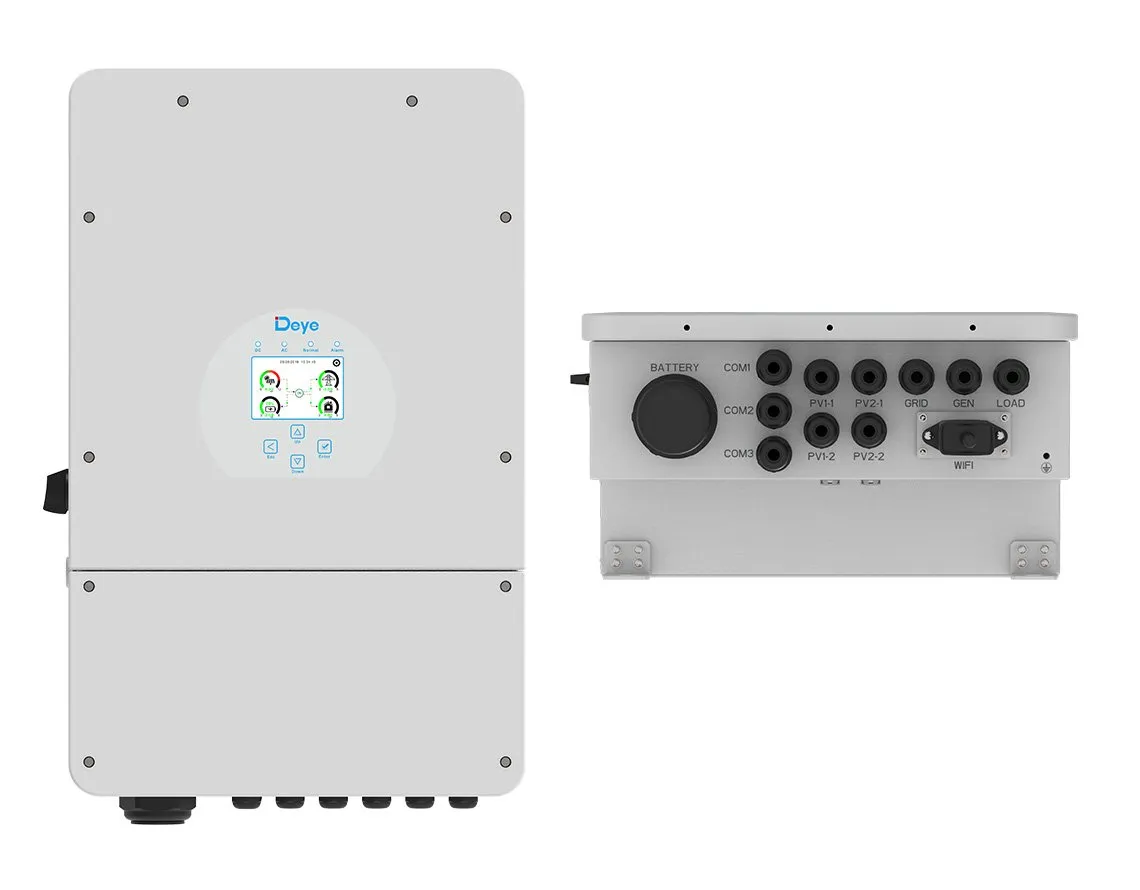

Deye 10kW 48V Hybrid Inverter (SUN-10K-SG02LP1-EU-AM3)
The Deye SUN-10K-SG02LP1-EU-AM3 hybrid inverter is engineered to deliver maximum efficiency and reliability for modern solar energy systems. With three MPPT trackers, it ensures precise energy harvesting from multiple solar arrays, while its 250A charge/discharge capability supports large battery banks for extended backup power.
Its IP65-rated enclosure makes it suitable for outdoor installations, protecting against dust, rain, and harsh environments. The inverter’s parallel operation capability (up to 16 units) allows scalability for both residential and industrial projects.
Designed for versatility, it seamlessly integrates with diesel generators, enabling hybrid energy solutions that combine solar and conventional backup power. The smart Wi-Fi monitoring system provides real-time visibility and control, empowering users to optimize performance and reduce energy costs.
This inverter is the perfect choice for companies and homeowners seeking a durable, adaptable, and future-ready solar solution.
Key Features
. Advanced Power Electronics & Rectification
-
Inrush Current Management: Engineered with high-grade IGBTs capable of a 20,000W surge (2x rated power) for 10 seconds. This is critical for starting heavy inductive loads like 5HP borehole pumps or industrial-grade air conditioning units.
-
Pure Sine Wave Output: Maintains a Total Harmonic Distortion (THDi) of <3%, delivering power that is often cleaner than the utility grid. This protects sensitive medical equipment, high-end audio systems, and delicate PCB boards in modern appliances.
-
Ultra-Fast UPS Switching: At <4ms transition time, the inverter bypasses the standard 10–20ms “blink” found in competitors, ensuring that even the most sensitive desktop computers and VoIP systems remain online without a reboot.
2. Industry-Leading Battery Throughput
-
210A Bidirectional Capacity: This is one of the highest charging currents in the 48V market.
-
Solar Charging: Can push up to 10,000W of solar power directly into the batteries.
-
AC Charging: Can charge batteries at full 10kW speed from a generator or the grid during off-peak hours.
-
-
BMS Handshake (CAN/RS485): Native protocols for over 20 lithium brands. It monitors cell voltages, temperatures, and State of Health (SoH) to adjust charging curves dynamically, extending battery life by up to 20%.
3. PV String & MPPT Engineering
-
Dual MPPT (2+2 Configuration): Features two independent Maximum Power Point Trackers, each supporting two strings. This allows for complex roof layouts (e.g., East, West, and North orientations) without losing efficiency due to mismatch.
-
High String Current: Supports up to 26A + 26A of operating current, making it fully compatible with modern high-wattage (580W+) large-format bifacial modules.
-
Wide Voltage Window: With a startup of 125V and an operating range up to 500V, the system begins producing power earlier in the morning and continues later into the evening.
4. System Versatility & Ports
-
Smart Load / Aux Port: This multi-functional port can be configured in three ways:
-
Micro-Inverter Input: Connect existing grid-tie inverters to the Deye to add battery backup to an old system.
-
Smart Load Output: Automatically power non-essential loads (like water heaters or pool pumps) only when the battery is full and solar is plentiful.
-
Generator Input: Features a dry contact signal to auto-start a diesel generator when battery levels drop below a programmed threshold.
-
5. Mechanical & Thermal Reliability
-
IP65 Ingress Protection: The internal electronics are hermetically sealed against dust and high-pressure water jets, essential for the humid and dusty environments often found in East Africa.
-
Intelligent Thermal Management: Uses variable-speed fans that only ramp up under heavy load, maintaining high efficiency while keeping the unit cool during the 10kW sustained output.
-
Color Touch LCD: A 4.3-inch resistive touchscreen allows installers to set up the entire system (battery chemistry, work modes, and export limits) on-site without needing a laptop or internet connection.
Technical Specifications
| Category | Details |
|---|---|
| Model | Deye SUN-10K-SG02LP1-EU-AM3 |
| Type | Single-phase hybrid solar inverter |
| Rated Power Output | 10 kW |
| Maximum DC Power | 20 kW |
| PV Input Voltage | Rated: 370 V; Max: 500 V |
| MPPT Trackers | 3 independent MPPTs |
| Strings per MPPT | 2 |
| Max DC Current | 26 A per input |
| AC Output Voltage | 220/230 V (single-phase) |
| AC Output Frequency | 50/60 Hz |
| Max AC Power | 11 kW |
| Max AC Current | 45.5 A |
| Efficiency | 97.5–97.6% |
| Ingress Protection | IP65 (dust-tight, water-resistant, outdoor-ready) |
| Battery Compatibility | Lead-acid & Lithium-ion |
| Battery Voltage Range | Low-voltage battery support |
| Max Charge/Discharge | 250 A |
| Parallel Operation | Up to 16 units (on-grid & off-grid) |
| Generator Integration | Supports energy storage from diesel generators |
| Smart Features | Wi-Fi monitoring, colorful touch LCD, remote management |
| Warranty | 5 years standard (extendable to 10 years) |
Benefits
- High Efficiency: Reduces energy losses and maximizes solar yield.
- Scalable Design: Parallel operation supports large installations.
- Hybrid Capability: Ensures uninterrupted power supply with generator integration.
- Smart Monitoring: Real-time visibility and control via Wi-Fi.
- Durability: IP65 protection ensures reliable outdoor performance.
Applications
- Residential solar systems
- Commercial energy solutions
- Industrial hybrid power setups
Conclusion
The Deye SUN-10K-SG02LP1-EU-AM3 hybrid inverter is a reliable, adaptable, and future-ready solution for solar energy systems. With advanced features, high efficiency, and smart monitoring, it empowers users to optimize energy performance while ensuring durability and scalability.
