Description

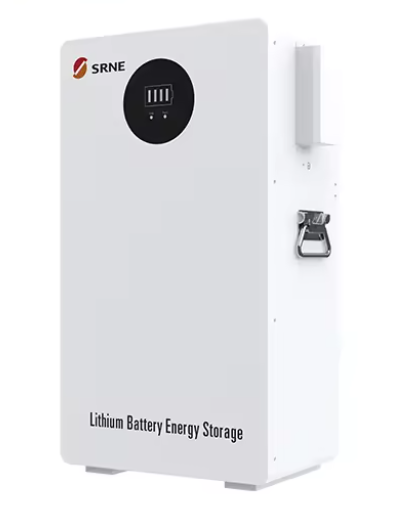

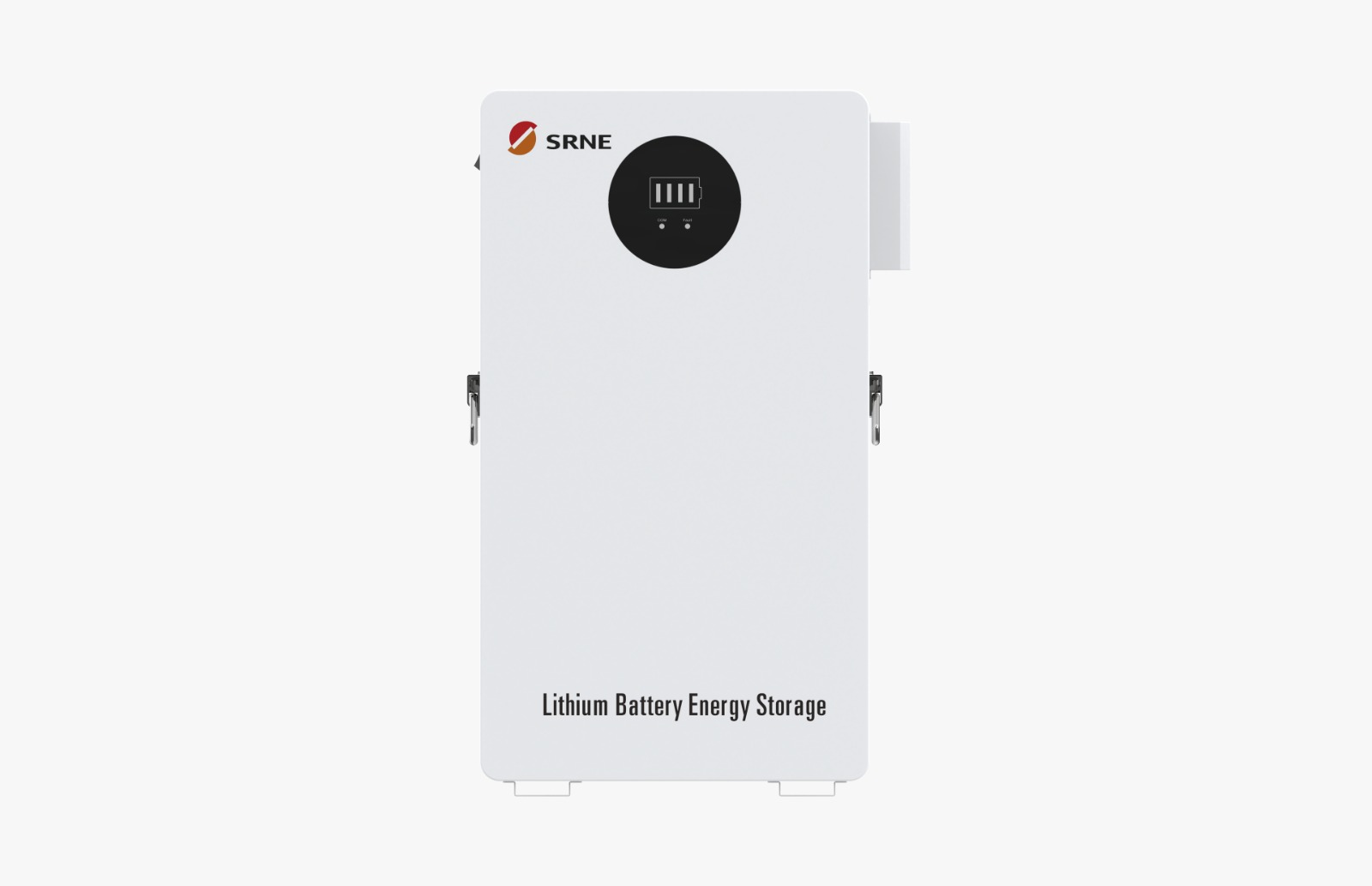

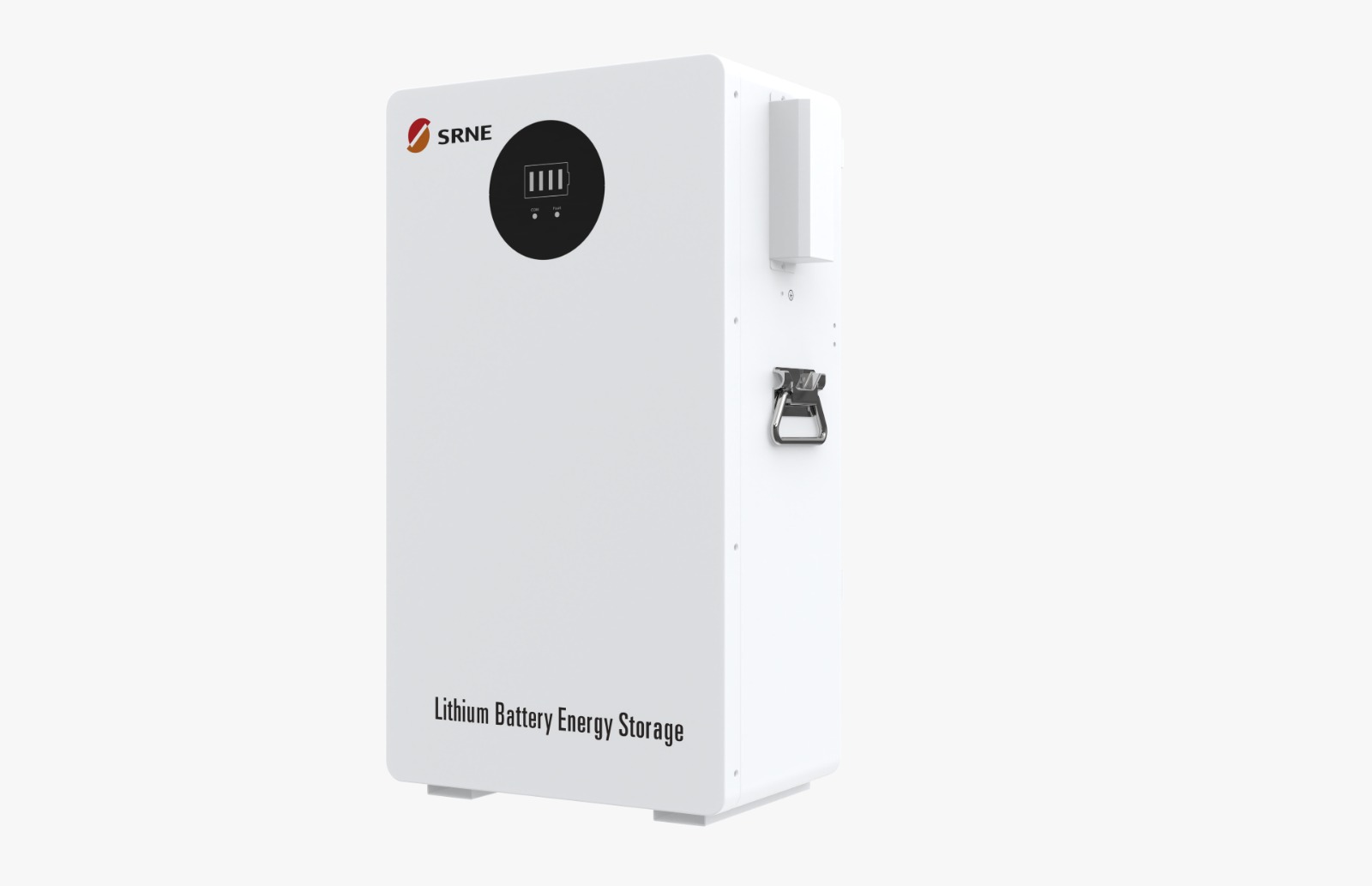

SRNE 10.49kWh Wall-Mount LiFePO4 Battery (51.2V 205Ah)
The SRNE 10.49kWh (SR-SE10B) is a heavy-duty energy storage powerhouse designed for full home backup and large-scale solar systems. By doubling the capacity of standard 5kWh modules, this 205Ah unit provides massive autonomy in a single, high-density wall-mounted chassis.
It is the perfect choice for users who need to run heavy appliances, air conditioning, or entire households through extended power outages.
Key Performance Highlights
-
⚡ Reliable Power Volume: With a 10.49kWh (205Ah) capacity, a single unit provides robust energy storage to run essential loads—including lighting, refrigeration, and office electronics—throughout the night or during grid outages.
-
🔋 Advanced LiFePO4 Safety: Built using high-stability Lithium Iron Phosphate (LFP) cells, offering superior thermal safety and a cobalt-free, eco-friendly design.
-
🚀 Efficient Throughput: Supports a 100A continuous charge/discharge rate, with a 240A peak (3 seconds) to handle the high-current demands of startup loads like air conditioners or pumps.
-
🏢 Compact Wall-Mount Design: The sleek, modern chassis is specifically engineered for wall or floor mounting, freeing up valuable floor space in plant rooms or garages while maintaining a high-tech aesthetic.
-
🔄 Total System Integration: Equipped with CAN, RS485, and USB communication protocols for seamless “Plug & Play” compatibility with Deye, SRNE, Victron, and Growatt inverters.
-
📈 Massive Scalability: Easily expand your system as your energy needs grow. Connect up to 16 units in parallel to achieve a total storage capacity of 167.84kWh.
Advanced Smart Features
-
Real-Time Monitoring: Features integrated Wi-Fi and Bluetooth connectivity, allowing users to view real-time data, battery health, and charging status directly through a mobile app.
-
Intelligent BMS Protection: A proven Battery Management System (BMS) provides comprehensive protection against over-voltage, under-voltage, over-current, and short circuits.
-
Long-Life Performance: Designed for longevity with a cycle life of >6,000 cycles, providing over 15 years of reliable daily service under standard operating conditions.
Key Technical Ratings
| Feature | Specification |
| Model | SR-SE10B |
| Storage Capacity | 10.49kWh (10,490 Watt-hours) |
| Nominal Voltage | 51.2V (Compatible with all 48V Inverters) |
| Rated Capacity | 205Ah (True Grade-A Lithium Cells) |
| Max Continuous Discharge | 200A (Supports loads up to 10,000W) |
| Cycle Life | 6,000+ Cycles (15+ Year Design Life) |
| Communication | CAN / RS485 / Bluetooth / Wi-Fi |
What It Can Run (Estimated Runtimes)
Calculated at 90% Depth of Discharge (approx. 9.4kWh usable energy).
| Appliance Profile | Total Load | Estimated Runtime |
| Whole House Essentials (Lights, Wi-Fi, 2 Fridges, TV) | 600W | ~15–16 Hours |
| Modern Home Office (3 PCs, Server, AC, Lights, Kettle) | 1,500W | ~6–7 Hours |
| Heavy Cooling (12,000 BTU Inverter AC – Continuous) | 1,200W | ~8 Hours |
| High-Power Load (Water Pump + Microwave + Ironing) | 3,000W | ~3 Hours |
Installation & Mounting
-
Wall Requirements: Must be mounted on a solid concrete or reinforced brick wall capable of supporting >100kg.
-
Clearance: Maintain at least 20cm of clearance on all sides for ventilation and cable management.
-

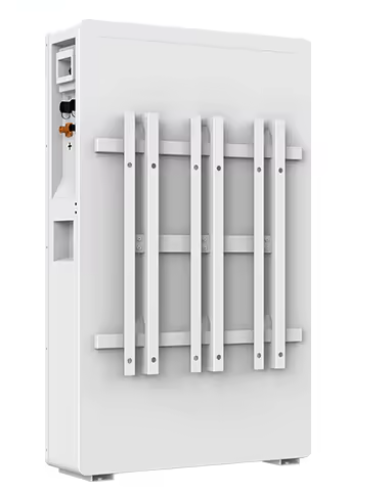

Mounting Bracket: Secure the heavy-duty bracket first using the provided M8 expansion bolts before lifting the battery onto the hooks.
Wiring & Port Configuration
-
DC Terminals: Features dual positive (+) and negative (-) ports for easy parallel wiring.
-
Communication Ports: * CAN/RS485: For Inverter communication (Default: Pylontech/SRNE protocol).
-
RS232: For PC software debugging.
-
-
Parallel Setup: Support for up to 16 units. When paralleling, use the ADS (Address) Dip Switches to assign each battery a unique ID (Master = 0000).
System Startup Procedure
-
Connect DC Cables: Ensure correct polarity (+ to +, – to -) between battery and inverter.
-
Connect Comm Cable: Link the battery “CAN” port to the inverter “BMS” port.
-
Power On: Toggle the physical Power Switch on the side to “ON.”
-
Soft Start: Press and hold the “Reset/Wake” button for 3 seconds until the LED indicators light up.
Safety & Maintenance
-
-
Smart BMS: Automatically protects against over-charge, over-discharge, and short circuits.
-
Temperature: Discharge range is -20°C to +60°C; Charging range is 0°C to +55°C.
-
Storage: If stored for over 6 months, the battery must be recharged to 50% SOC to maintain cell health.
-
